Pin from China manufacturer - Ningbo Golma-Cool Ventilation Parts Co., Ltd.

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: GM

Production Capacity: 10000PCS/WEEK

Delivery Date: 15DAYS

Means of Transport: BY SEA OR AIR

Packing: CARTON PACKAGED

Brand Name: GOLMA-COOL

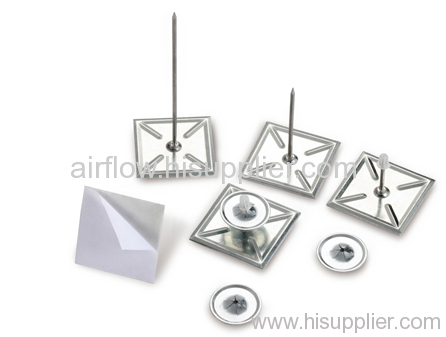

Insulation Pin, Fastening for Insulation Can Be either Welded or Non-welded Configurations

Base size: 25 x 25mm/35 x 35mm/40 x 40mm/45 x 45mm/50 x 50mm all are standard
Diameter: 1.70mm for 25 x 25mm base; 2.67mm and 3.00mm for both 35mm or 50mm base are standard. Other sizes available by special order only.
Length: 20mm to 150 mm are standard. Other lengths available by special order.
Material:1.70mm pin is aluminum; 2.67mm and 3.00mm pin are low carbon steel. Also available by special order in all stainless steel or all aluminum
Plating: galvanized costing is standard. yellow, white and blue gal are available
Washers: self-locking washers are available in a variety of sizes, shapes and materials
Recommended assembly method:
- Operation at ambient temperatures between 15 and 25 degrees Celsius
- Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
- Remove the protective release paper taking care not to touch the adhesive
- Place the hanger in the required position and press the base against the surface to be insulated
- Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of adherence is achieved after 24 hours
